757ISR-LG

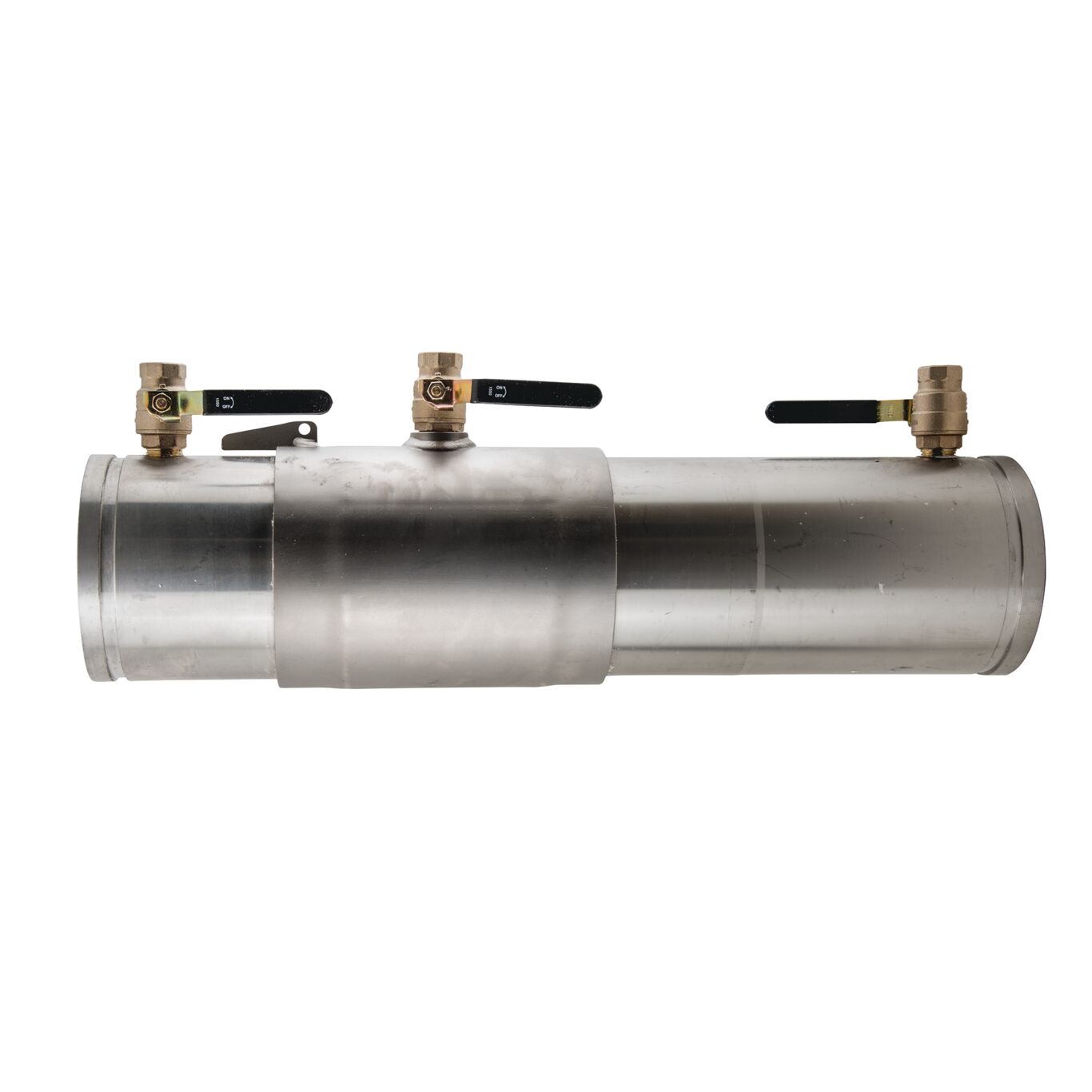

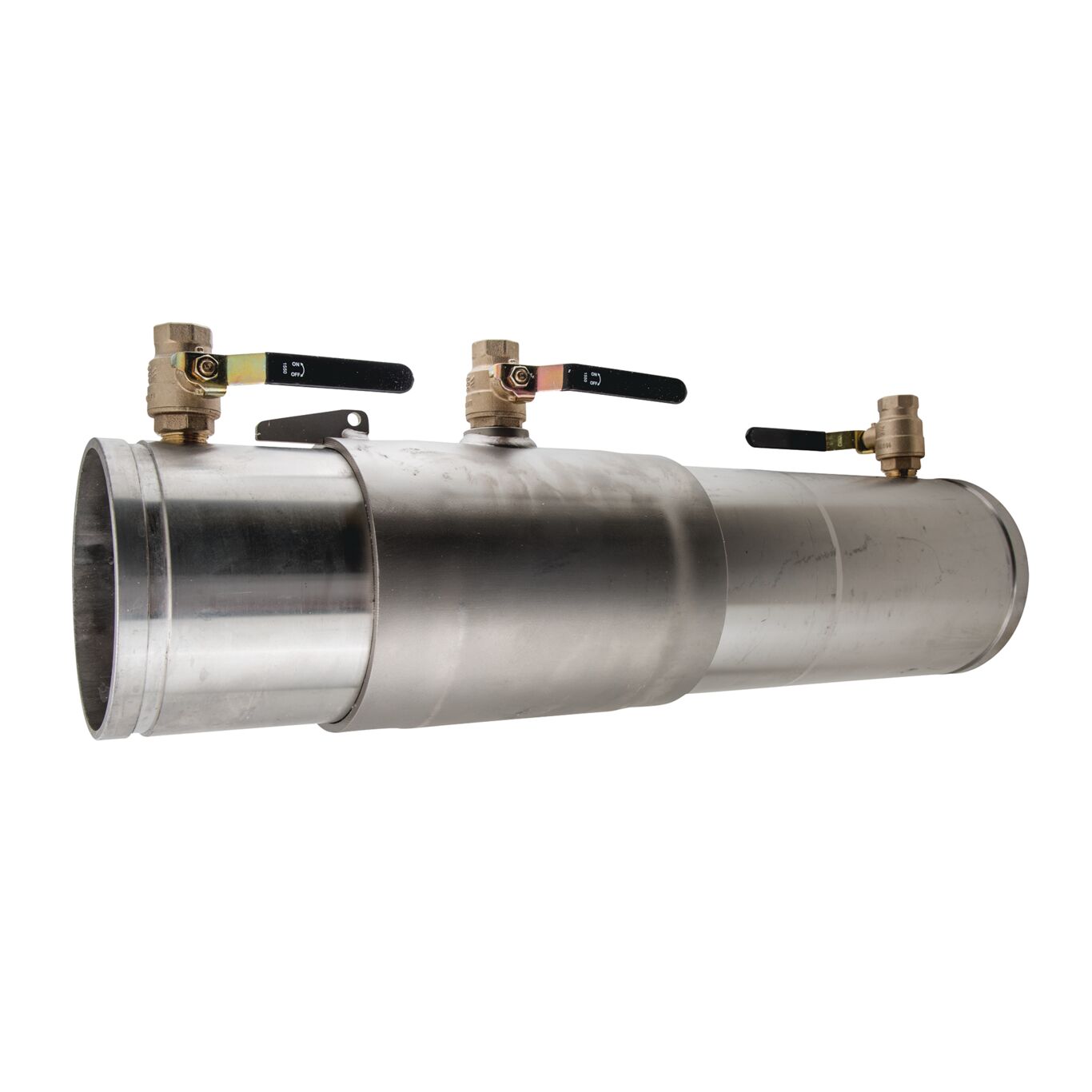

Double Check Valve Assembly, 100mm-250mm, 4-10 IN
Series 757ISR-LG Double Check Valve Assemblies are used to prevent backflow of non-health hazard pollutants that are objectionable but not toxic, from entering the potable water supply system. Series 757ISR-LG may be installed under continuous pressure service and may be subjected to backpressure and backsiphonage. This double check valve assembly consists of two independently operating tri-link check modules within a single housing, sleeve access port, four test cocks and two drip tight shut-off valves. Tri-link checks shall be removable and serviceable, without the use of special tools. Available in sizes 100mm-250mm (4-10 IN).
- Extremely compact design
- 70% Lighter than traditional designs
- 304 (Schedule 40) stainless steel housing and sleeve
- Groove fittings allow integral pipeline adjustment
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 757ISR-LG
