Foot Valves
×
![]()
Foot Valves, 20mm-50mm, 3/4 - 2 IN

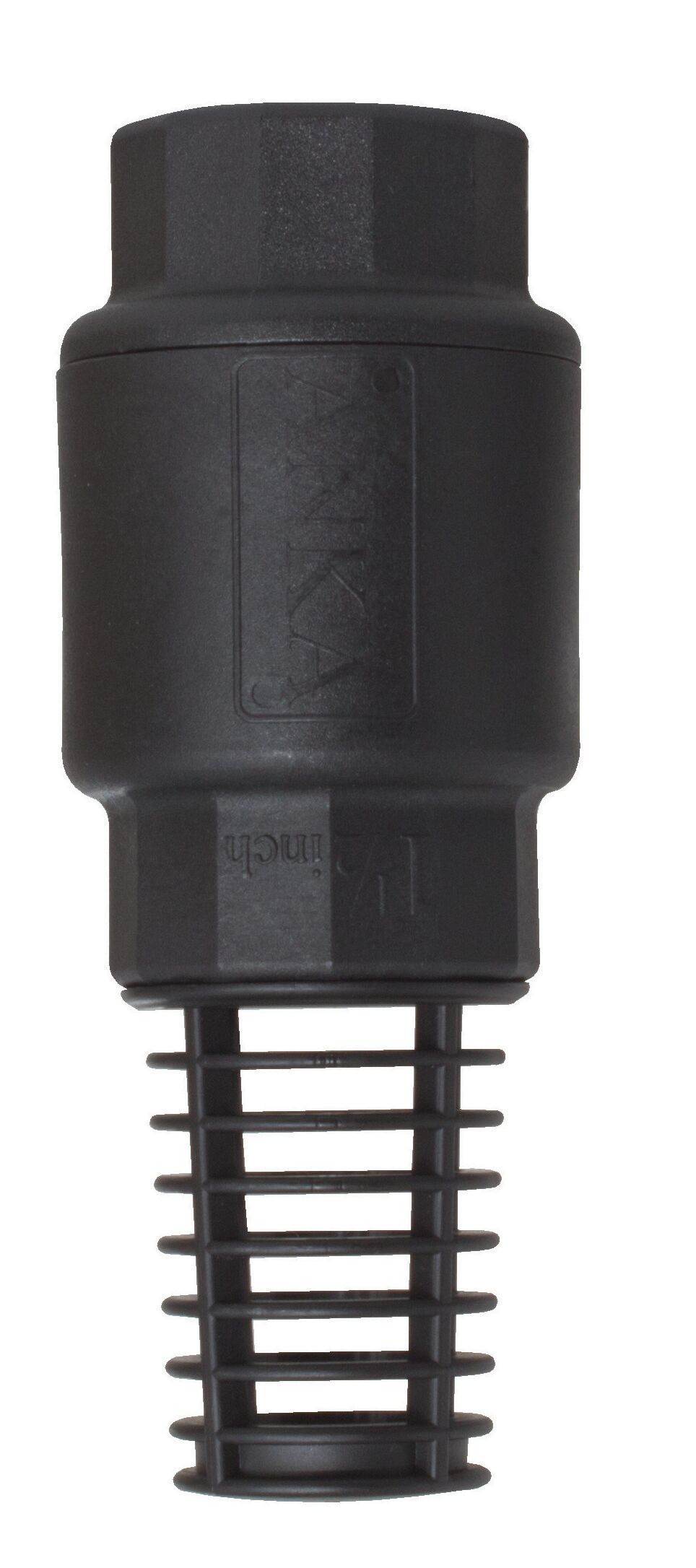

ANKA Foot Valves are spring loaded and can be installed at any angle. They come complete with a filter cage which can be taken off. Foot Valves are used at the suction end of pump lines to prevent loss of water. Manufactured of glass fibre reinforced nylon body with BSPT threads, includes 316 stainless steel spring, acetyl plunger, nitrile rubber seat and O-ring, and polypropylene filter cage. Sizes available 20mm - 50 mm (3/4 - 2 IN). Maximum Working Pressure is 16 bar (1600 psi - 230 psi) @ 20°C.
- Spring loaded; ideal for installation at any angle
- Serviceable; valves can be taken apart for servicing
- Non Corrosive; using high quality materials
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Foot Valves
