Quick-Lock Couplings
×
![]()
Quick-Lock Couplings, 20mm-40mm, 3/4 - 1 1/2 IN

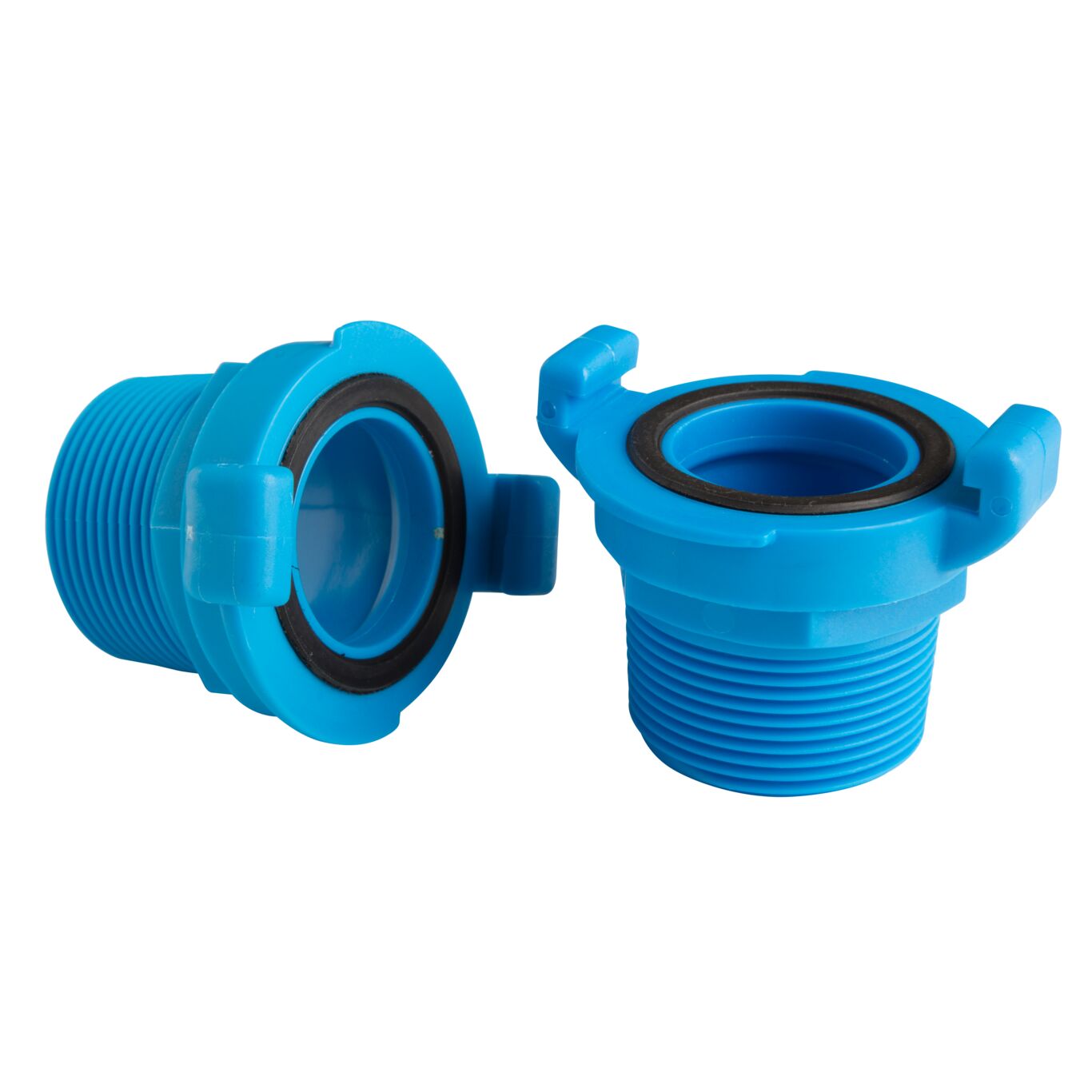

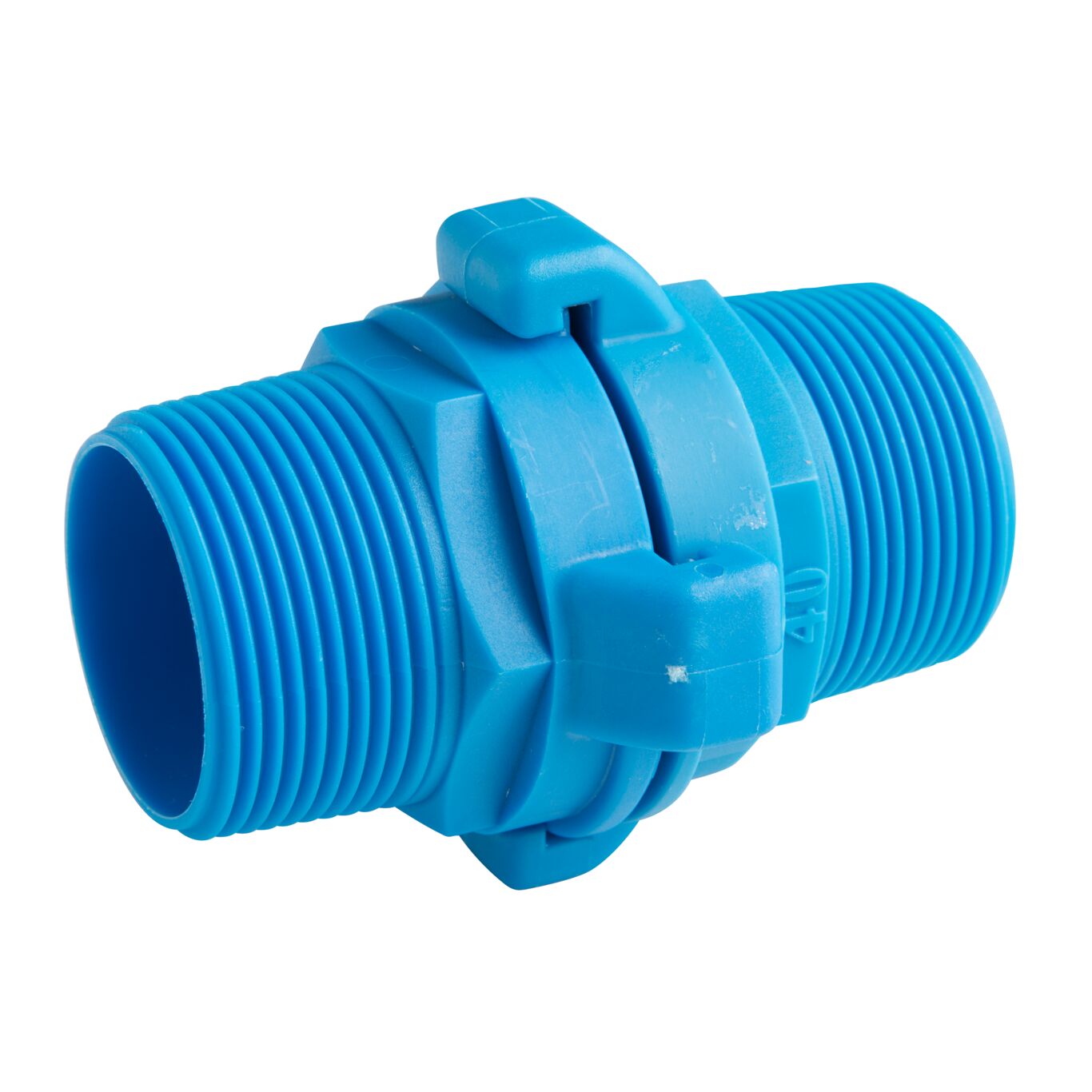

ANKA Quick-Lock Couplings are a quick action coupling designed to be put together and taken apart in one easy twist action. Because the seal ring end is a constant size each coupling is interchangeable allowing a wide range of configurations. Quick-Lock Couplings have a wide range of uses around the farm, horticulture, landscaping, fire and industry. Ensure seals are lubricated. Manufactured of glass fibre reinforced nylon body with BSPT threads, includes acryn seal. Sizes available 20mm - 40 mm (3/4 – 1 1/2 IN). Maximum Working Pressure is 10 bar (1000 kPa - 150psi ) @ 20°C.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Quick-Lock Couplings
