220P
×
![]()

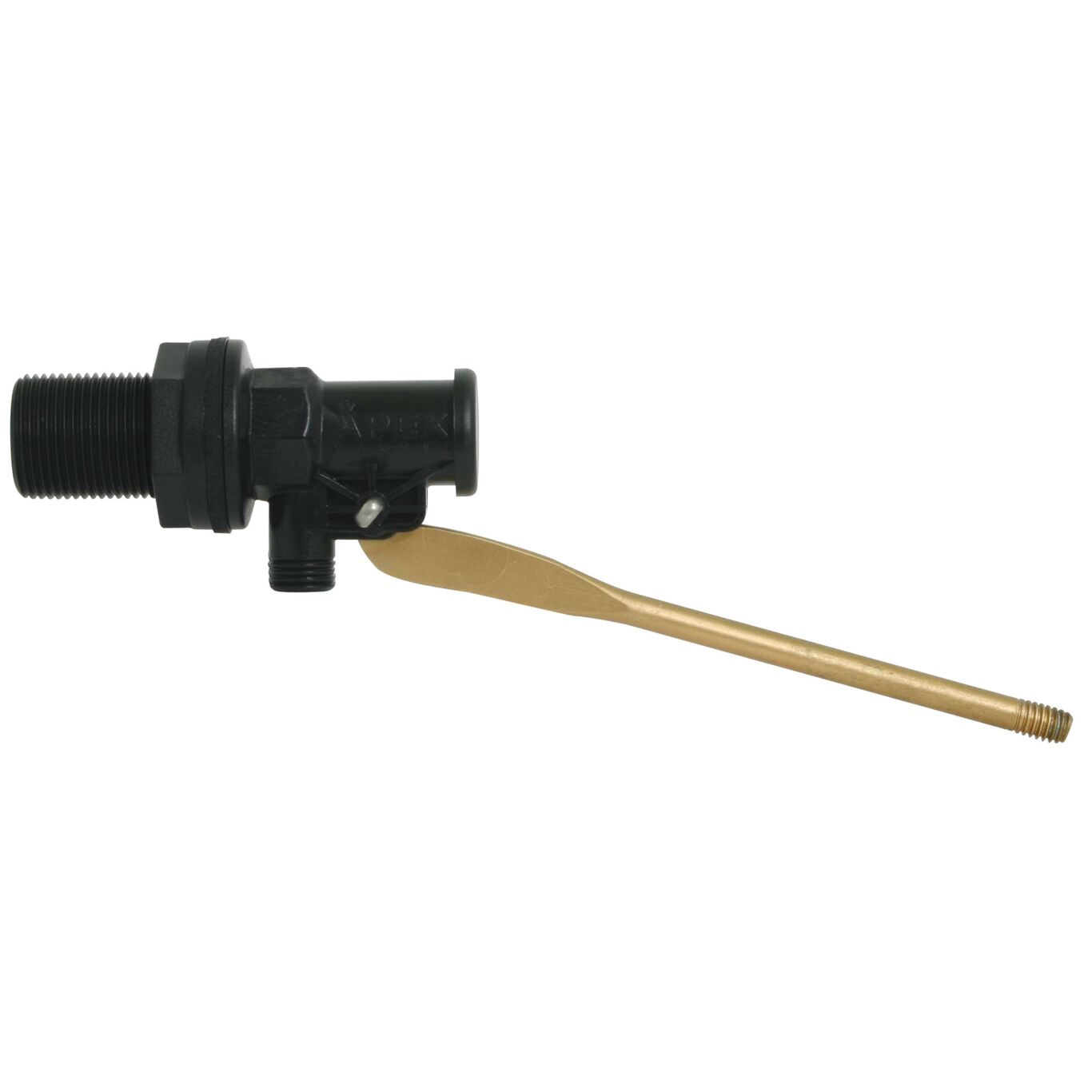

Plastic High/Low Plunger Activated Valve
Series 220P Plastic High/Low Plunger Activated Valve is used for small to medium sized troughs. Due to the compact nature of the valve this is ideally suited to troughs with confined inlet compartments. This valve has the added advantage of a barbed outlet for connection to a hose or silencer tube.
- Maximum temperature: 60˚C
- Inserted seat to cover different inlet pressures
- Supplied with high pressure seat fitted (up to 1400 kPa [200psi] working pressure)
- With seat removed, the valve is suitable for low to medium pressure (up to 500 kPa [70psi] working pressure)
- Float sizes 115mm or 150mm
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 220P
