TMV20BV
×
![]()
Tempering Valve, Solar 20mm/25mm

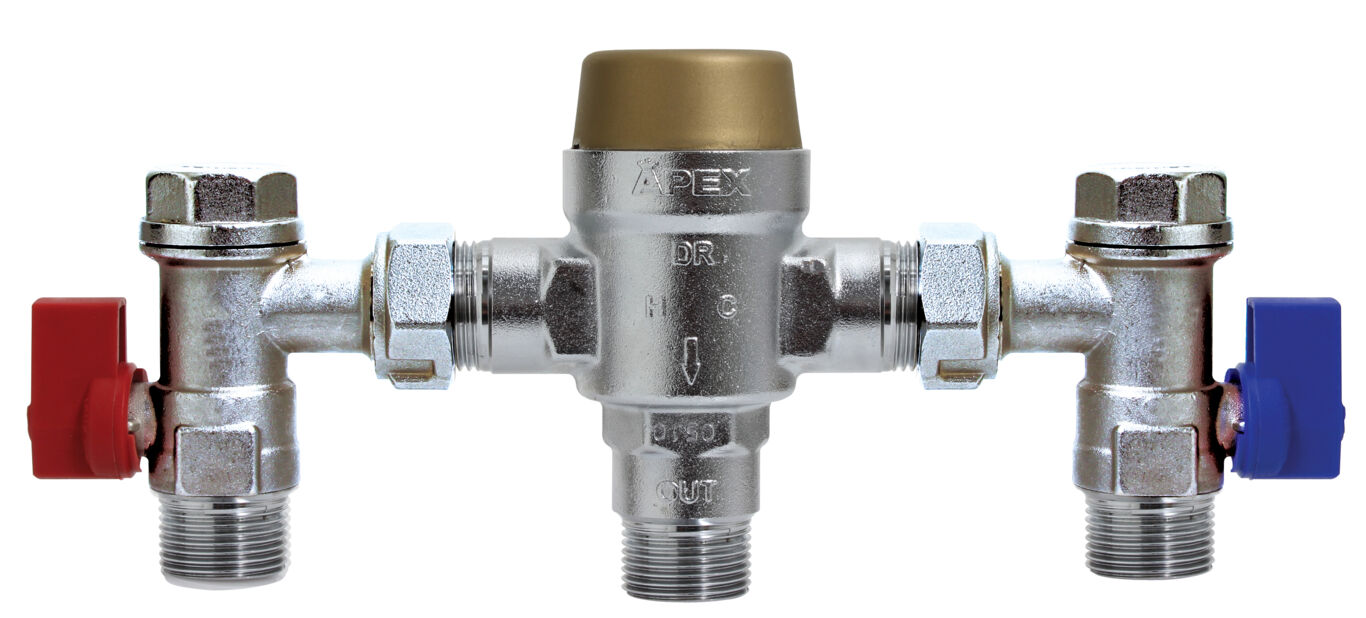

Series TMV20BV Thermostatic Mixing Valve with right angle ball valves are used where water temperature control must be precise or water is required to be at safe skin contact temperature (45°C) e.g. childhood centers, schools, elderly people’s homes, hospitals and institutions for people with psychiatric or physical disabilities. Valve has advanced temperature controls. Includes 250 micron/60 mesh filters to ensure no debris enters the valve and right angle ball valves for easy testing, maintenance and replacement. Outlet temperature adjustable 35 - 60°C.
- High flow rate, 40 L/min at 500 kPa
- Forged, high quality and corrosion resistant, DR brass body, nickel plated
- Fail safe shut down, controls temperature, factory set to 45°C
- Outlet temperature adjustable 35 - 60°C
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TMV20BV
