TMV20BVW/TMV20W
Thermostatic Mixing Valve with Disinfection Function - Thermal Flush, DN15-DN20
Precisely blends hot and cold water to a safe, stable temperature. Designed for hospitals, aged care facilities, schools and other high-risk applications. It delivers consistent protection against scalding, even when supply conditions change. Certified to AS4032.1 Thermostatic Mixing Valves Standard to meet the requirements of G12/AS1.

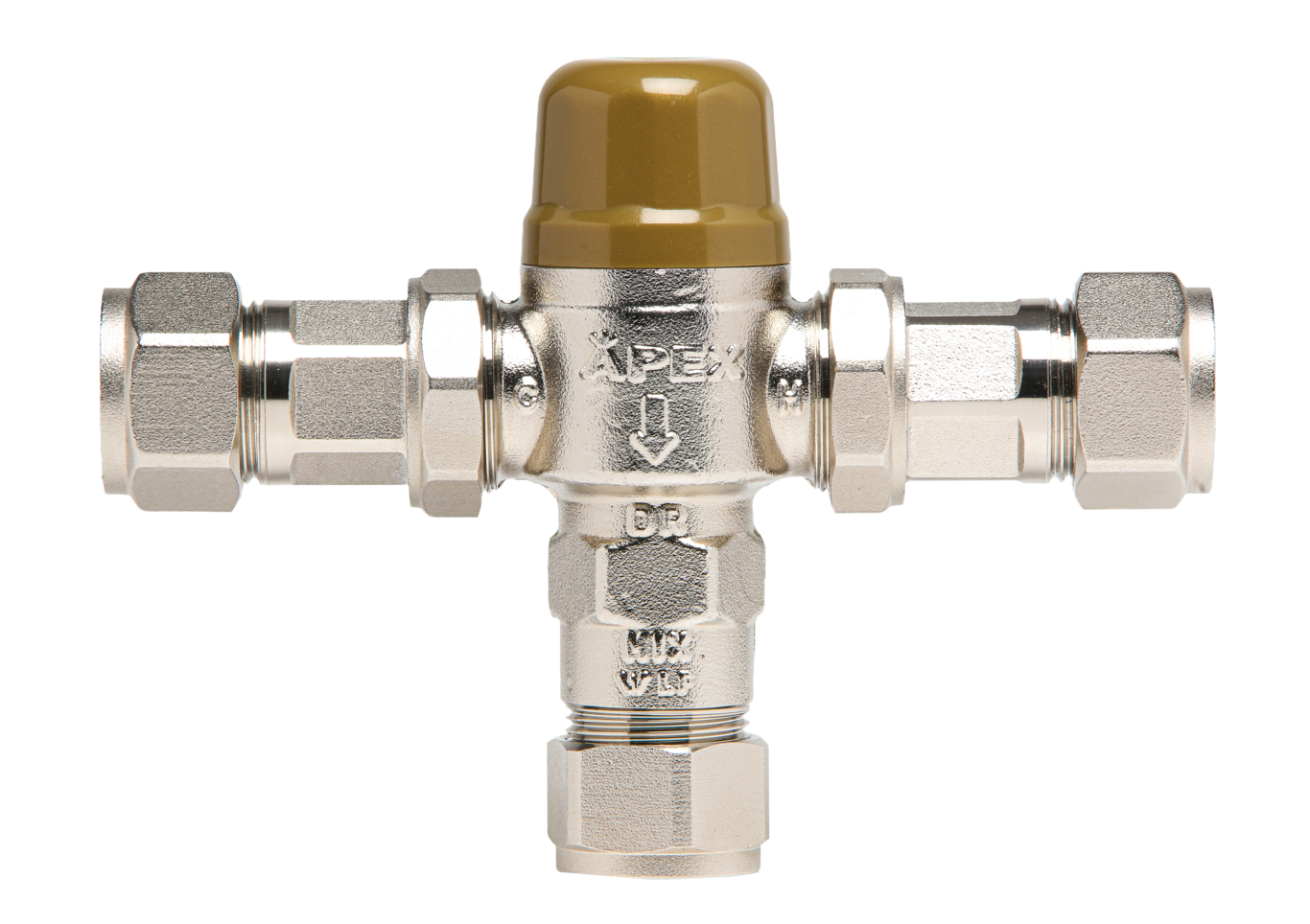

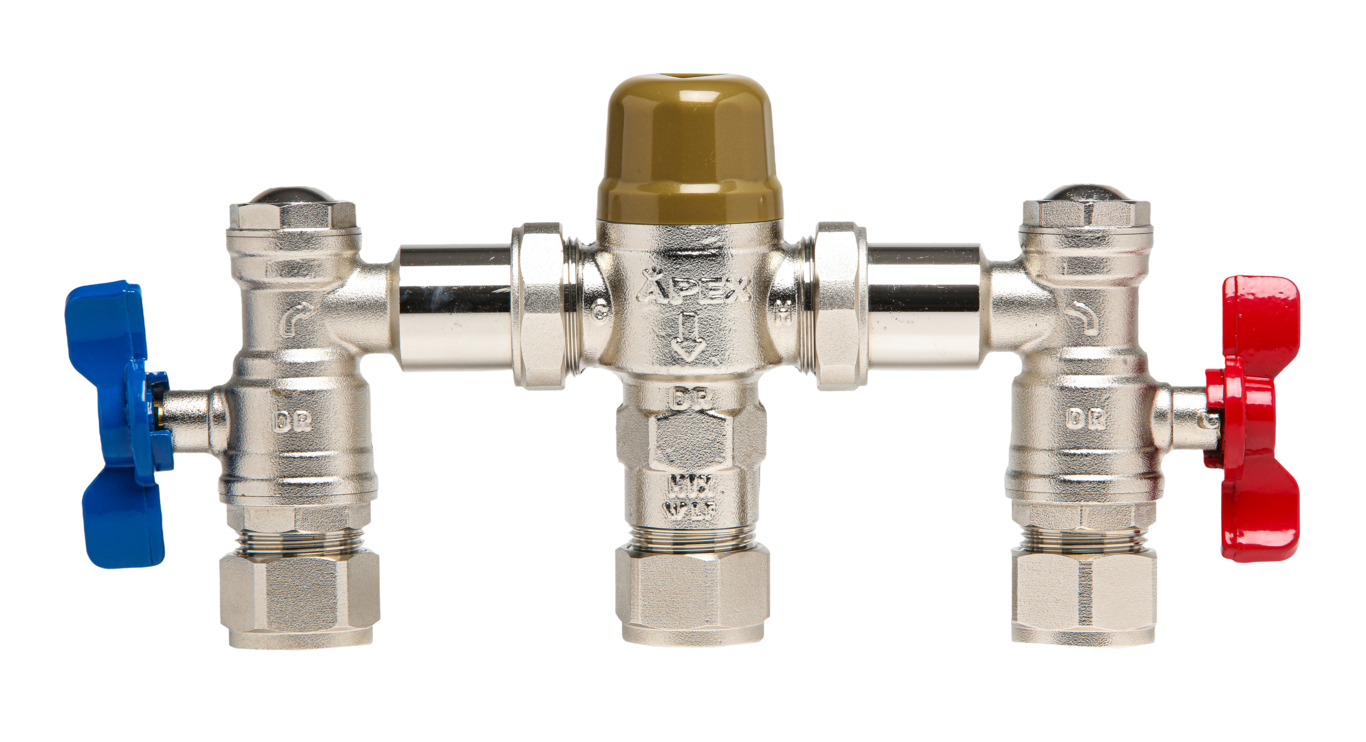

Available with integrated right-angle isolating ball valves (TMV20BVW) or with straight couplings (TMV20W). Supplied with 20mm (3/4" BSP) inlet and outlet connections, including copper olives and compression nuts for reliable installation. Temperature adjustment range is 35° to 45° Celsius. Flow rates are minimum 4 litres/minute to ensure stable outlet conditions. Maximum inlet pressure ratio for stable operation (Hot: Cold or Cold: Hot) 10:1 (either supply).
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TMV20BVW/TMV20W
