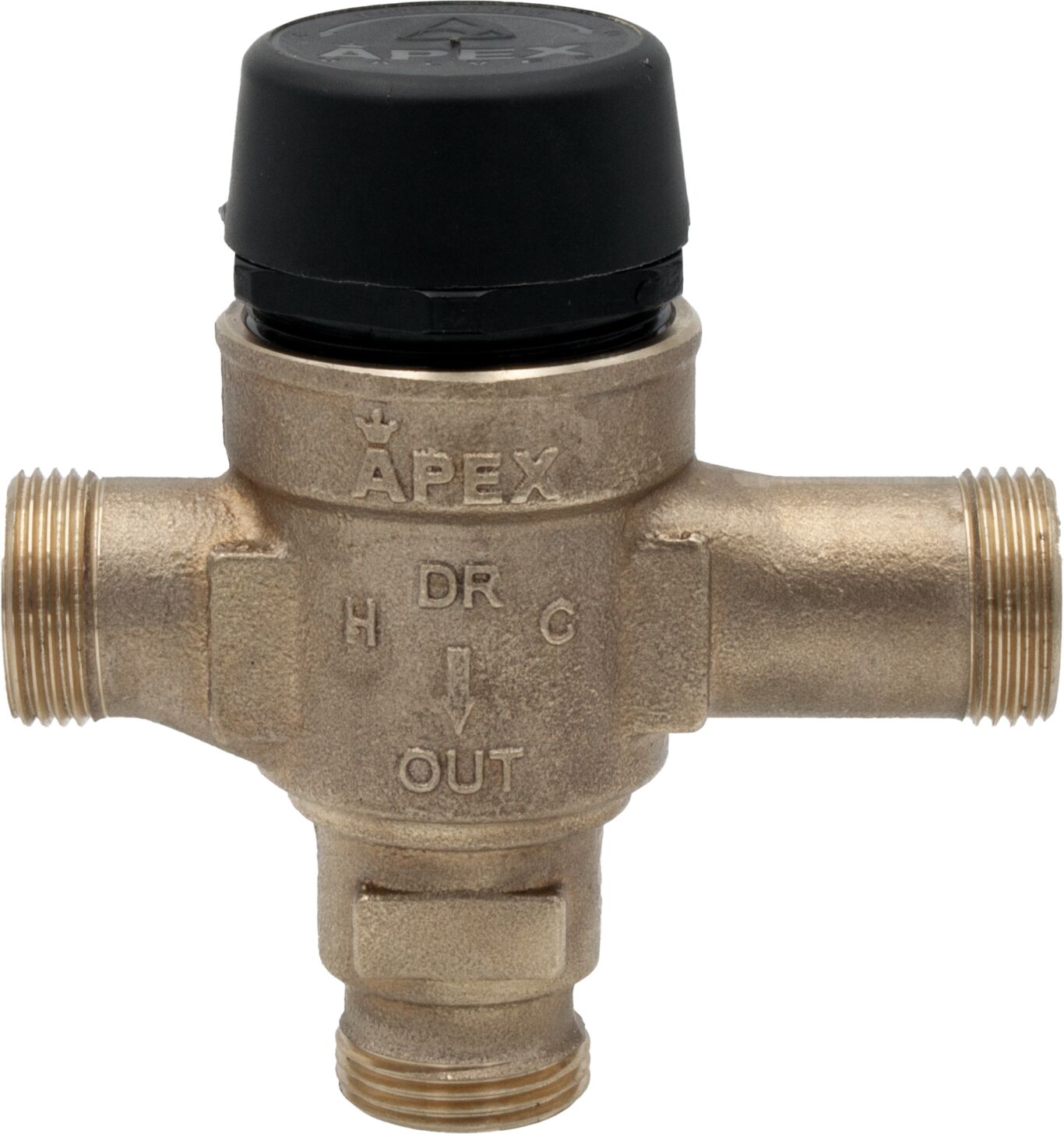

TV 20
×
![]()
Used in hot water supply systems to mix hot and cold water to a controlled outlet temperature, reducing the risk of exposure to excessively hot water. The TV 20 complies with Acceptable Solution G12/AS1 Requirement for dezincification resistant brass with a weighted average lead content of no more than 0.25%.
- Replaceable cartridge for quick and easy future maintenance
- TV 20 is adjustable from 35-60°C, factory set at 50°C
- Inlet: 20mm, ¾” BSP
- Outlet: 20mm, ¾” BSP
- Maximum Inlet Temperature: 99°C
- Flow Rate: 15 L/min at 20 kPa Inlet pressure
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TV 20
