TVC LF
×
![]()

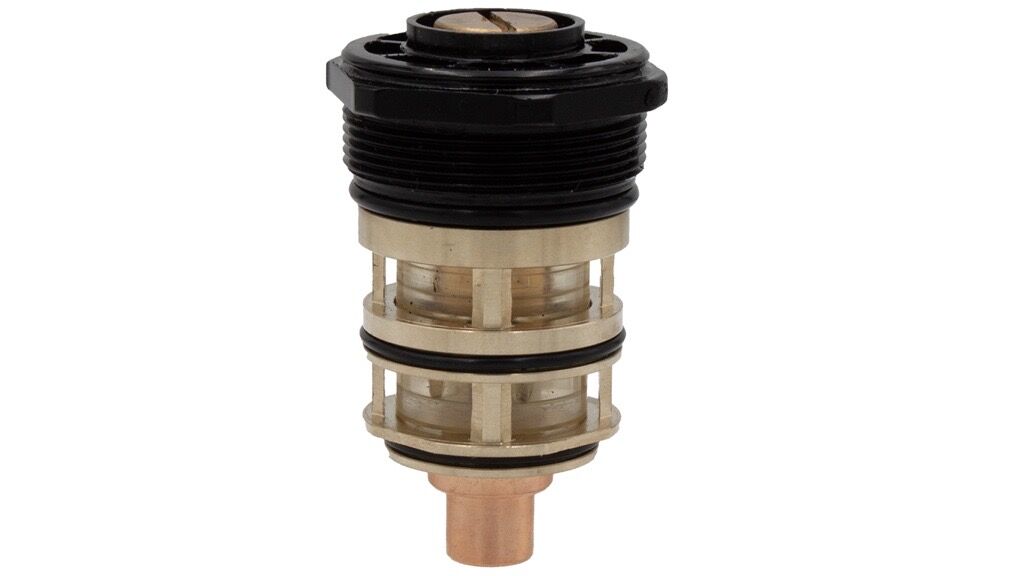

Replacement cartridge for Apex Valves TV 20 Cartridge Tempering Valves. This product is only compatible with tempering valves that have a hex cap cartridge (refer to specification sheet).
- Meets requirements for Acceptable Solutions G12/AS1 Requirement for dezincification resistant brass with a weighted average of no more than 0.25%
- Designed, assembled and tested in New Zealand
- Temperature adjustable from 35-60°C, factory set at 50°C
- Flow Rate: 15 L/min at 20 kPa inlet pressure
- Temperature adjustable from 35-60°C, factory set at 50°C
- Flow Rate: 15 L/min at 20 kPa inlet pressure
- Inlet Pressure: 20 - 1000 kPa
- Maximum inlet Temperature: 99°C
- 5-year warranty

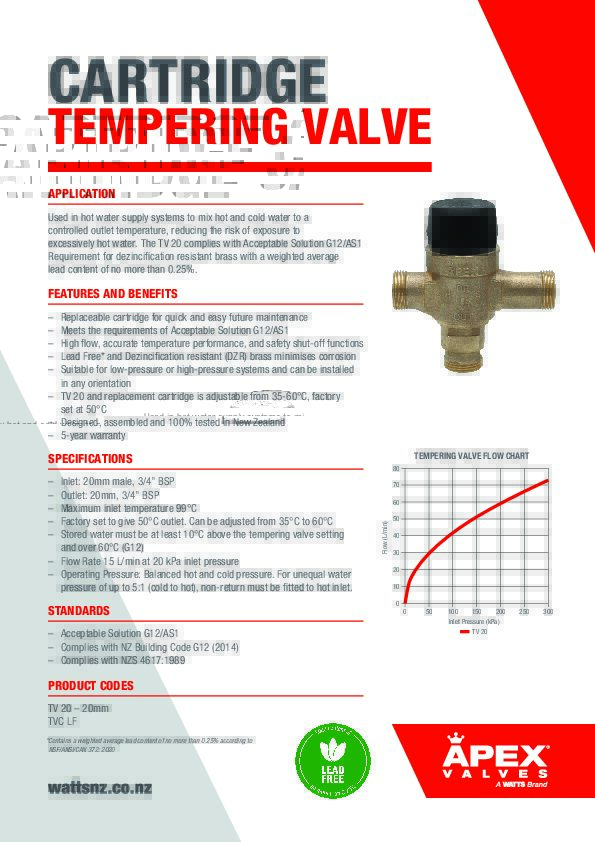

Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TVC LF
