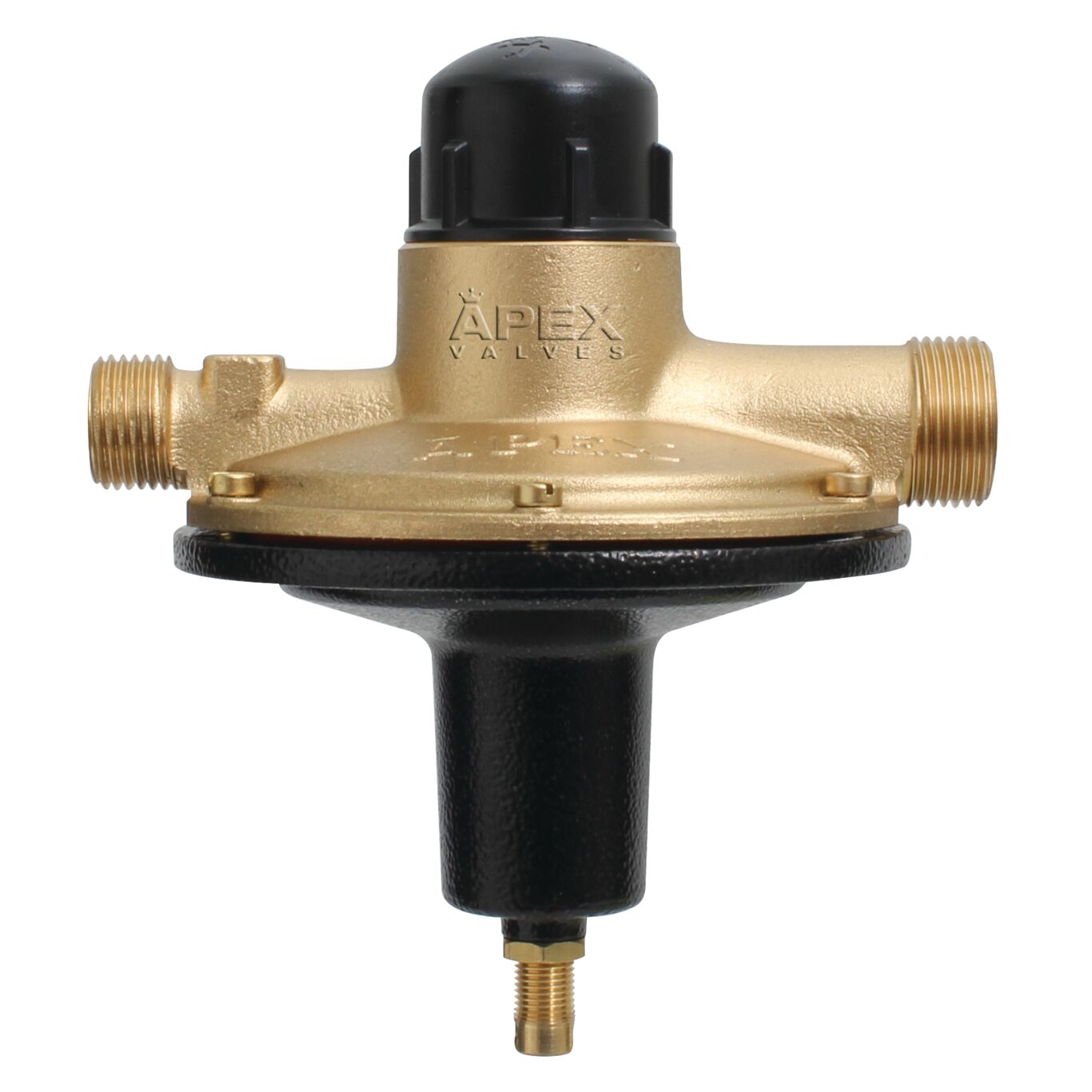

FV-15/20 Pressure Reducing Feed Valve
×
![]()
Pressure Reducing Feed Valve, 15mm Inlet x 20mm Outlet, 1/2 BSP x 3/4 BSP Threads

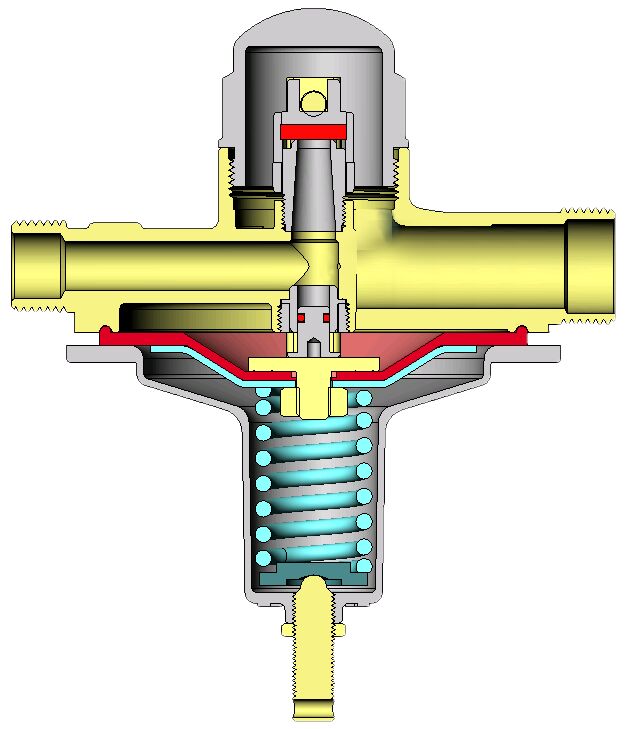

The FV-15/20 Pressure Reducing Feed Valve series are designed to give constant outlet pressure for low and medium pressure hot water systems. Valve consists of a 1/2 inch BSP (approx. 15 mm) male threaded inlet x 3/4 inch BSP (approx. 20 mm) male outlet. It has a forged high quality corrosion resistant DR brass body with silicon rubber diaphragm and washer. No heat loop required. Maximum inlet pressure up to 2000 kPa, 290 psi.
- One-piece forged brass fork with no water paths - no leaks.
- Pressure compensated to give constant outlet pressure regardless of inlet pressure
- Valve comes in either set pressures of 35, 65 or 110 kPa or adjustable pressures 15-100 kPa or 50-150 kPa
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FV-15/20 Pressure Reducing Feed Valve
