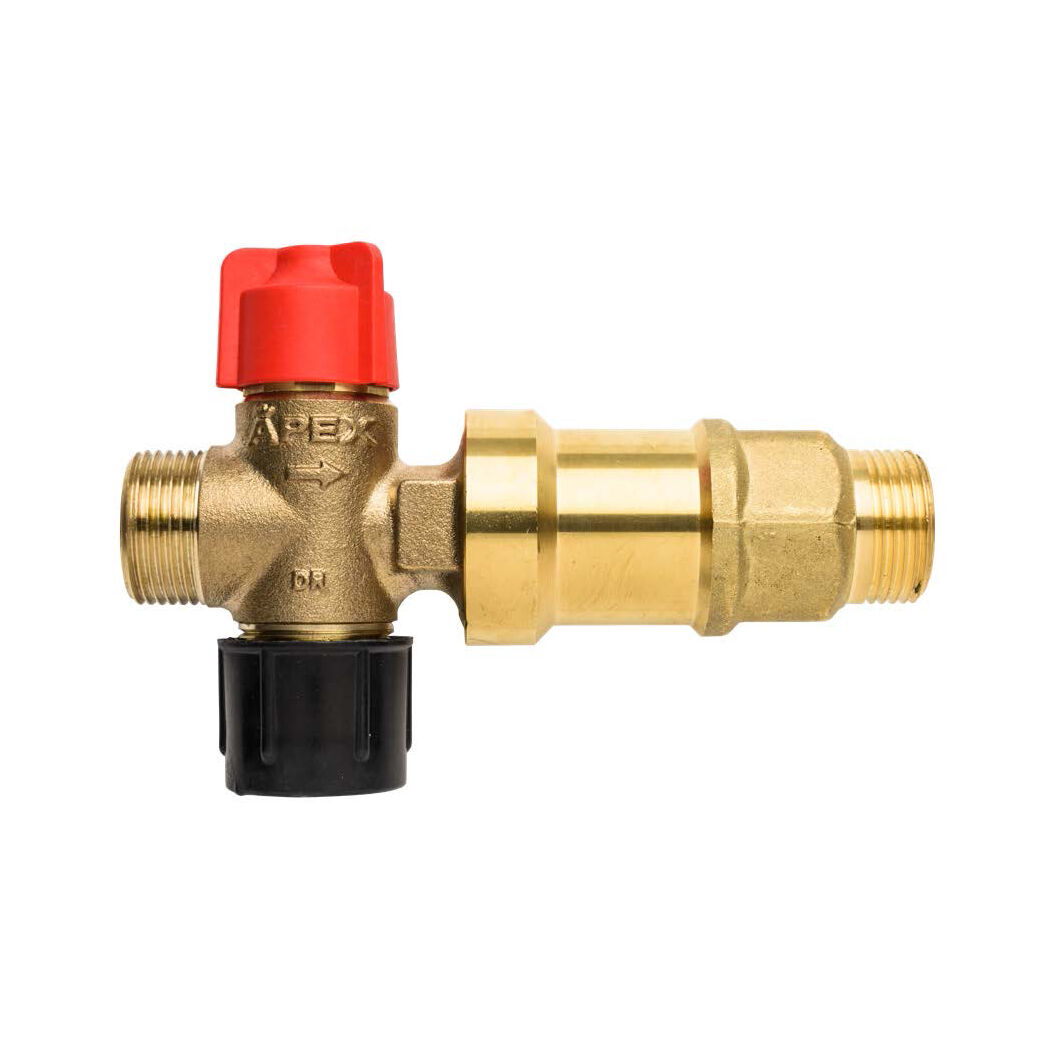

LSV20H500C
Limiting Stop Valve Commercial, 20mm, 3/4 BSP Male Connections, 350/500
Series LSV20H500C Commercial Limiting Stop Valve for hot or cold Water is used as protection for High (mains) pressure water systems. Non-return and filter all in one. Designed to protect systems running water up to 80°C. A retrofit solution for existing hot or cold systems. Body is made of forged, high quality and corrosion resistant DR brass.
- Designed to protect systems running hot water up to 80°C
- Pressure compensated to give constant outlet pressure regardless of inlet pressure
- Factory set at 500 kPa outlet pressure (Fully compensated)
- Non-return and Filter all in one
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LSV20H500C
