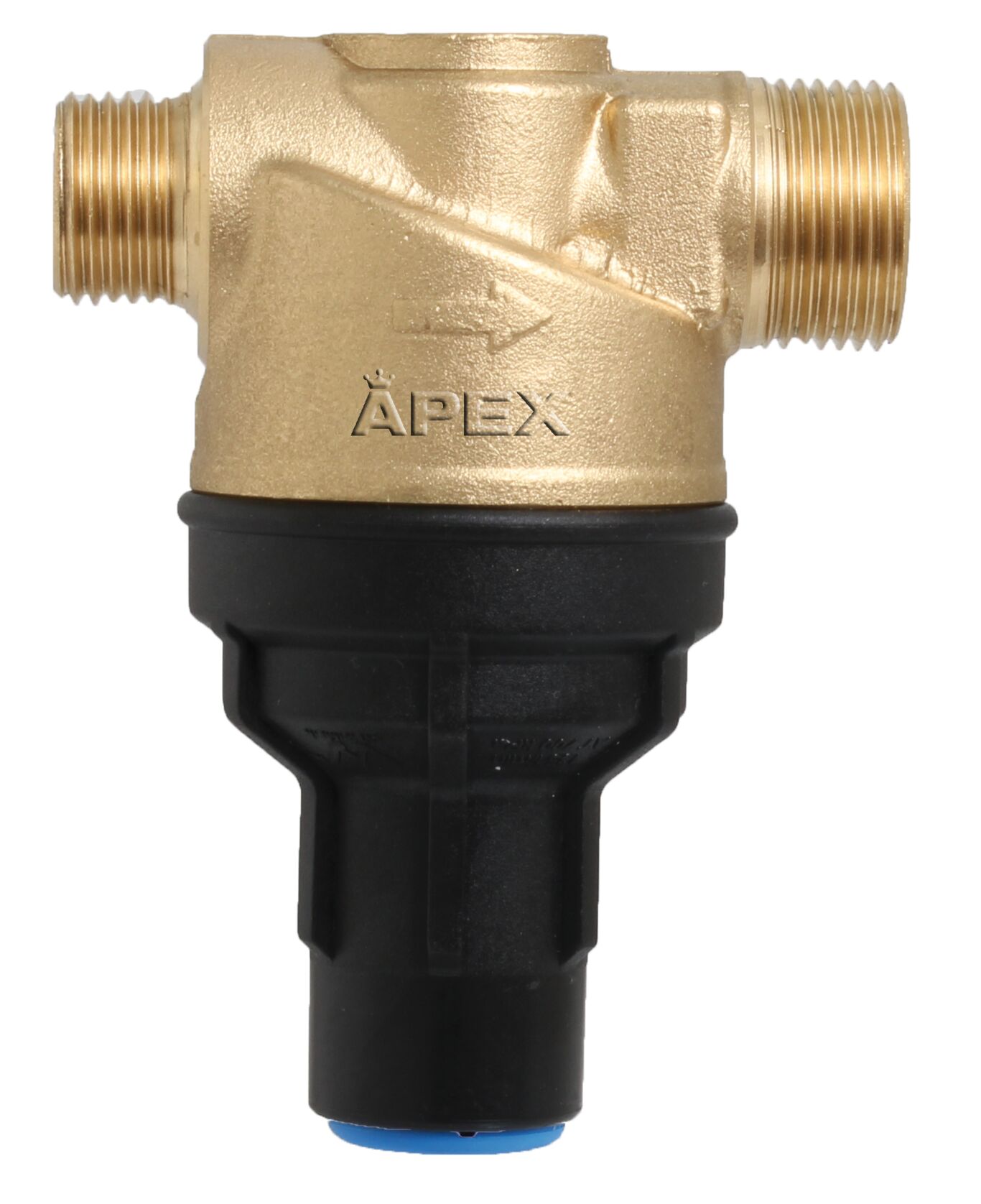

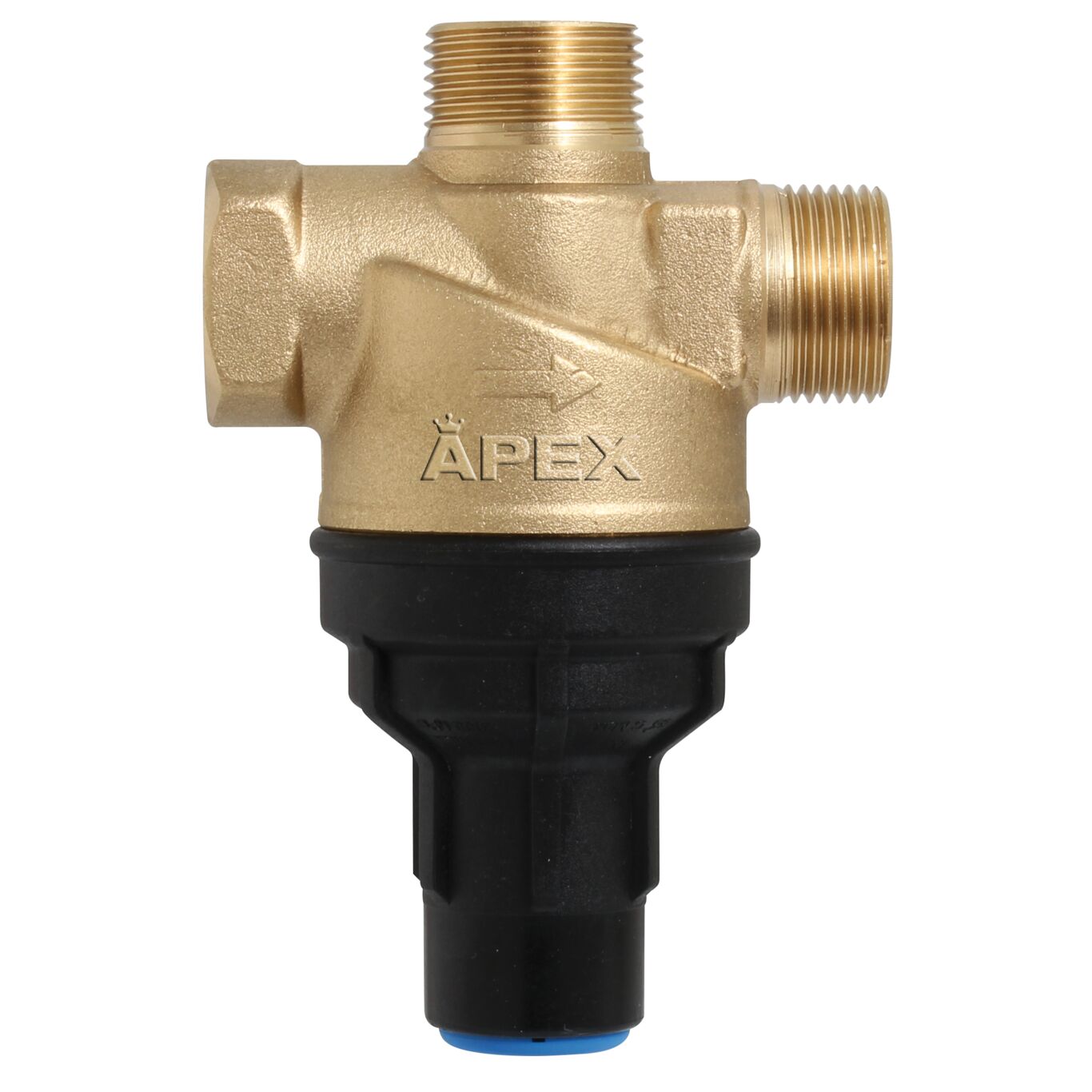

LV-15/20
Limiting Valve, 15mm-20mm
Series LV-15/20 Pressure compensated Limiting Valve for high demand high (mains) pressure systems such as apartments and commercial applications.
- Factory setting for adjustability 200-600 kPa
- Pressure compensated to give constant outlet pressure regardless of inlet pressure

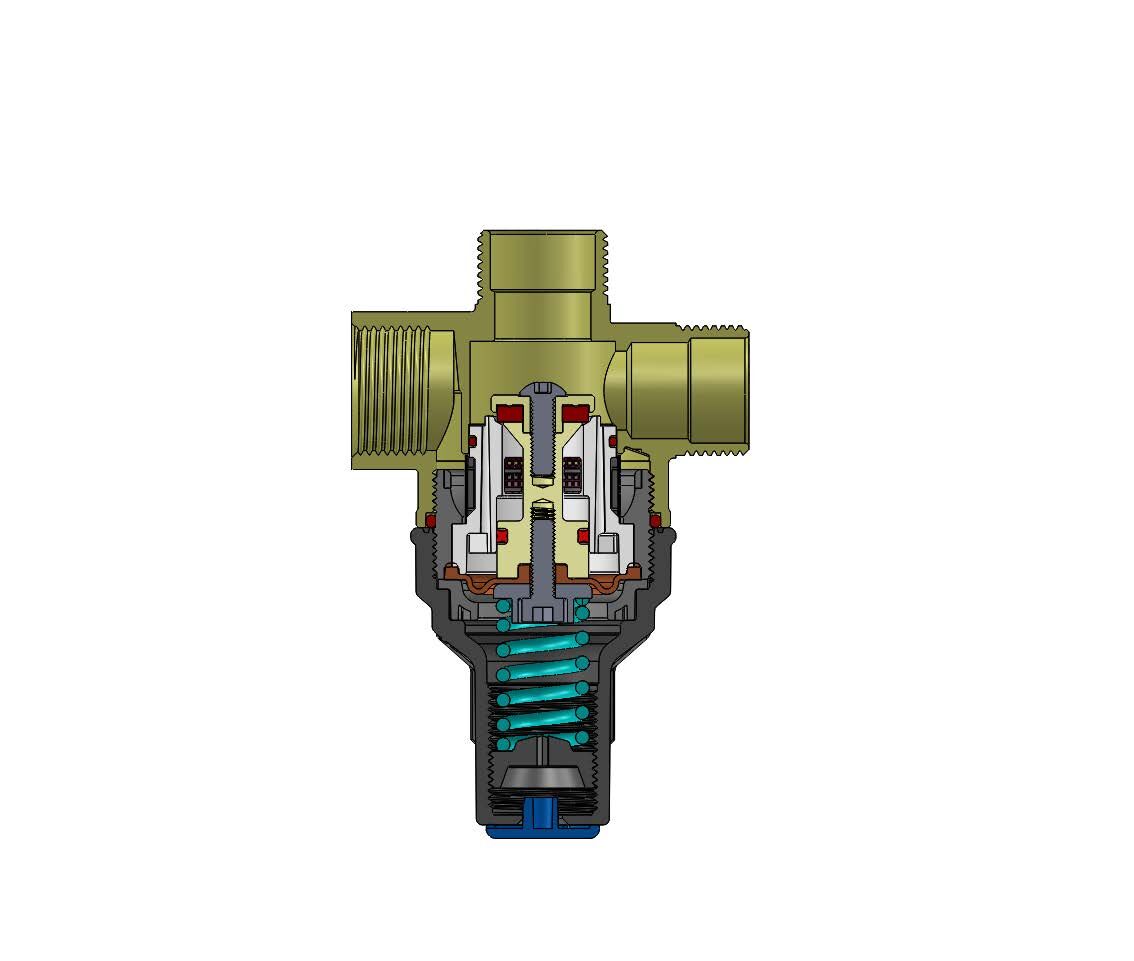

- Removal of cartridge will not affect the set pressures - all valve seats are contained within the cartridge
- Extremely high flow rates up to 135 L/min at 700 kPa inlet pressure
- No tools required to service valve, all valve seats and piston are contained in the easily replaceable cartridge
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LV-15/20
