EV-25/32 Honeywell
×
![]()
Honeywell Braukman Cold Water Expansion Valve 25mm/32mm

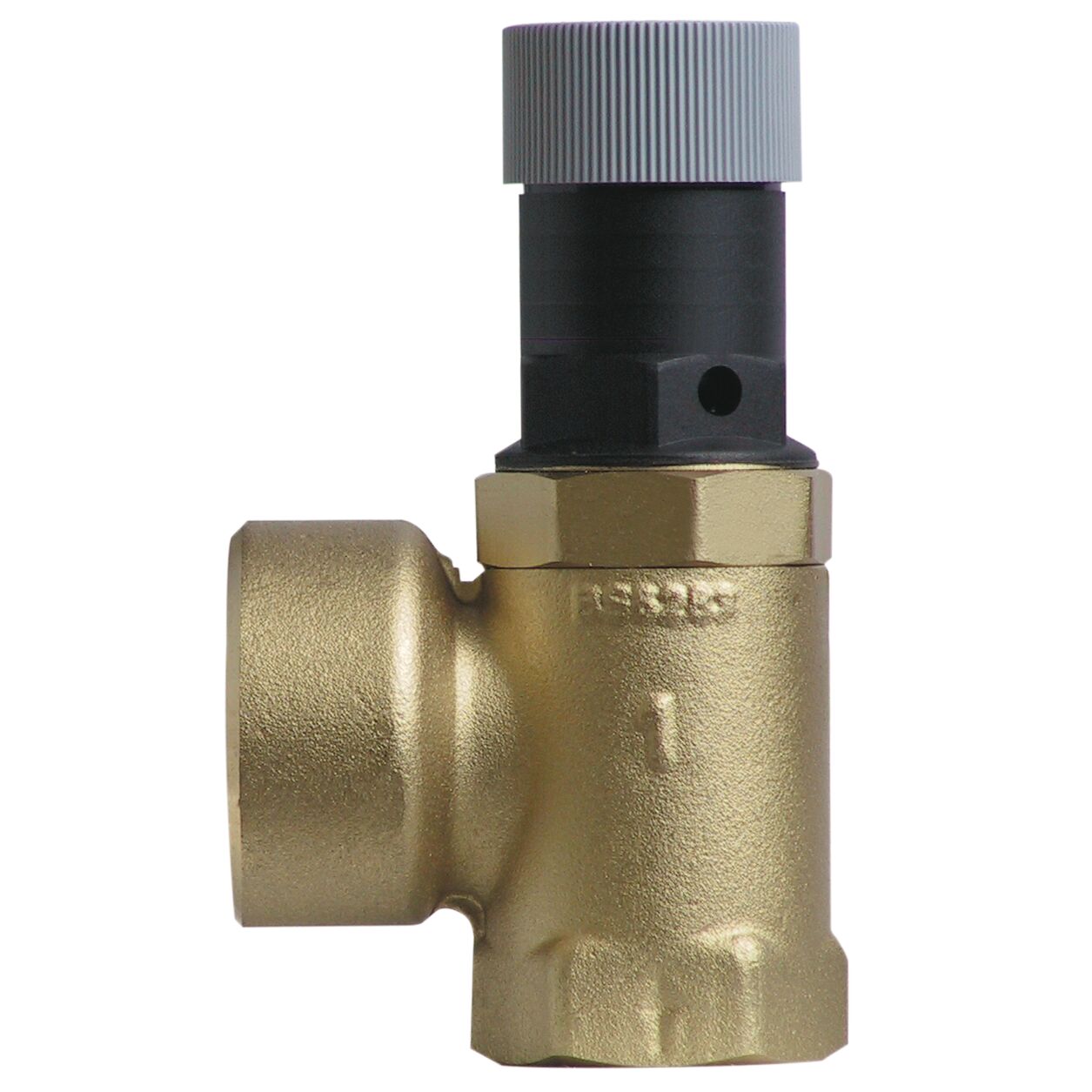

Series EV Honeywell Braukman Cold Water Expansion Valve relieves cold water from high (mains) pressure hot water systems, saving electricity. Designed for high pressure systems. Valve has forged high quality corrosion resistant DR brass body. Outlet pressure is factory set at 800kPa. Valve size 25mm 1" BSP female inlet x 32 mm 1 1/4 BSP female outlet has 250kW rating. Valve size 32mm 1 1/4" BSP female inlet x 40 mm 1 1/2 BSP female outlet has 2200kW rating. Maximum temperature is 90°C.
- Standard TRD 721
- Made in Germany
- Forged, high quality, corrosion resistant DR brass body
- Energy saving valve – relieves cold water rather than hot, saving electricity
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific EV-25/32 Honeywell
