EVT7.6/EVT12.2
×
![]()
Low Pressure Cold Water Expansion Valve, 20mm, 3/4inch BSP Male Connections

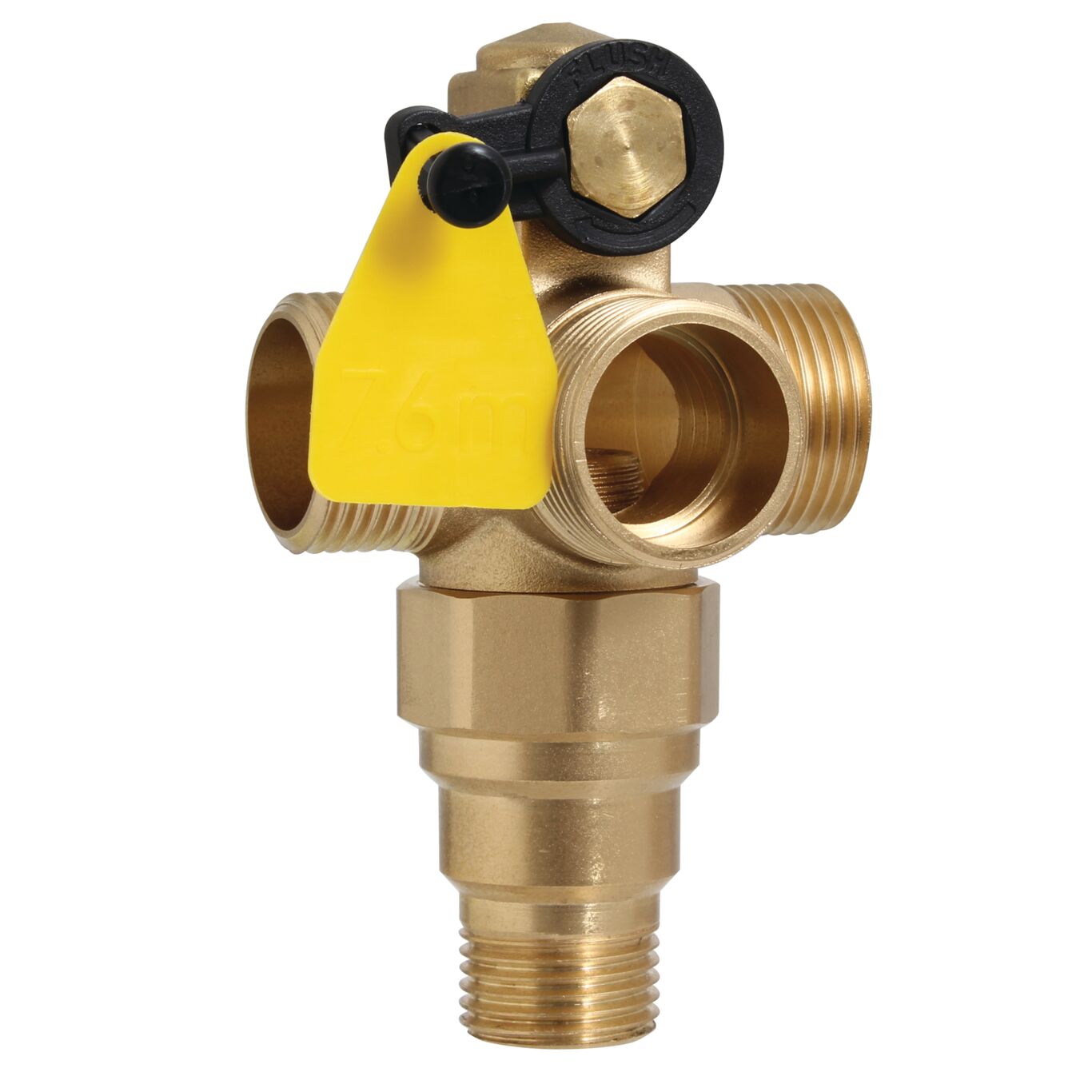

Series EVT7.6/EVT12.2 Low Pressure Cold Water Expansion Valve relieves cold water from high (mains) pressure hot water systems. Forged from high quality corrosion resistant DR brass body. High temperature diaphragm and non-corrosive valve seat materials mean long life and no heat loop required. Model EVT7.6 pressure setting is set at 75 kPa and used with FV 7.6. Model EVT12.2 pressure setting is set at 120 kPa and used with FV 12.2.
Features
- Energy saving valve – relieves cold water rather than hot, saving electricity
- Forged, high quality, corrosion resistant DR brass body
- Made in New Zealand
- Flushing lever/handle to clear foreign matter from the valve seat, can also be used as a cylinder drain
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific EVT7.6/EVT12.2
