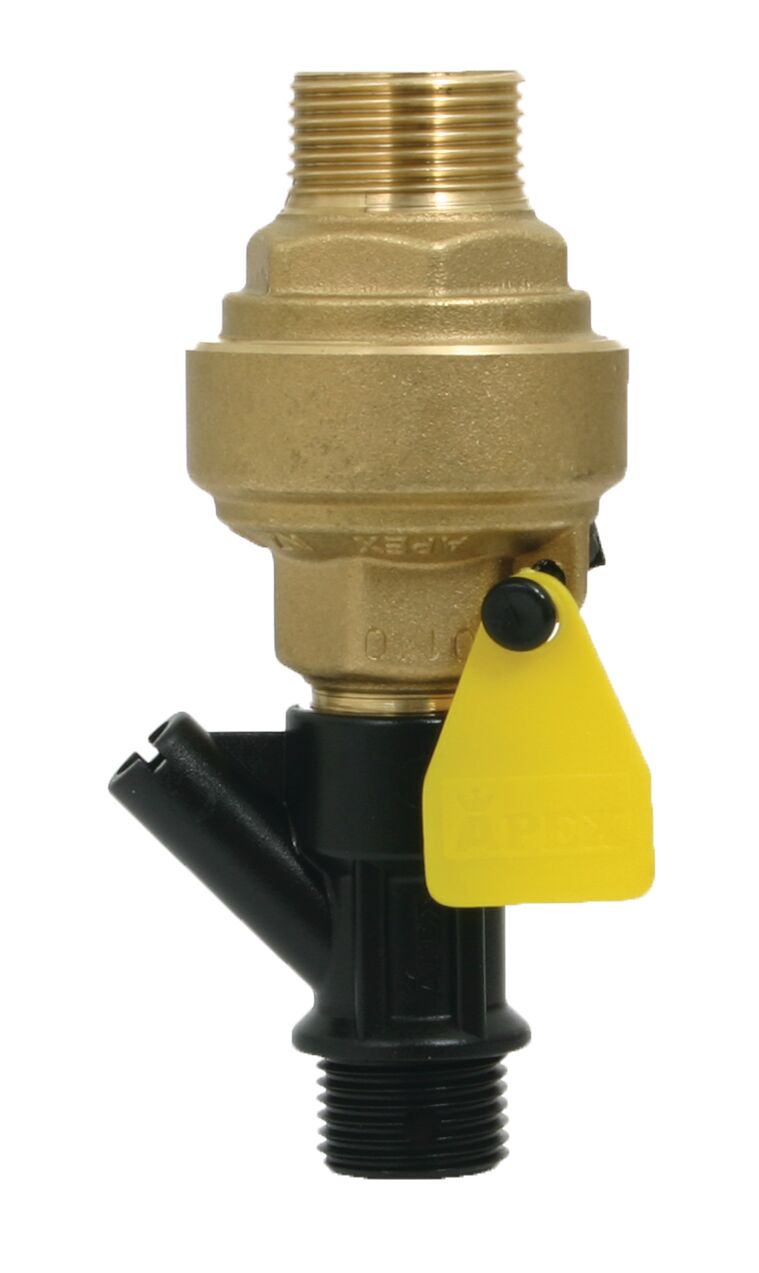

RV-20 Pressure Relief Valve
Pressure Relief Valve, 20mm 3/4" BSP Male Inlet, 15mm 1/2" BSP Male Outlet
Series RV-20 Pressure Relief Valve relieves pressure from low and medium pressure hot water systems. Valve has 20mm 3/4" BSP Male Inlet and 15mm 1/2" BSP Male Outlet. Includes vacuum breaker as failsafe against over pressure and implosion. Used on pressure systems for marine applications. Standard pressure settings at 37, 73 and 120 kPa.
- Body easily unscrews to allow cleaning of seats and seals, no body screws
- Unique vacuum break provided means valve retro fits all other similar relief valves at replacement
- Silicone rubber seals able to withstand 99°C
- Forged, high quality, corrosion resistant DR brass body
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific RV-20 Pressure Relief Valve
