Vacuum Break
×
![]()
Vacuum Break (Tundish)

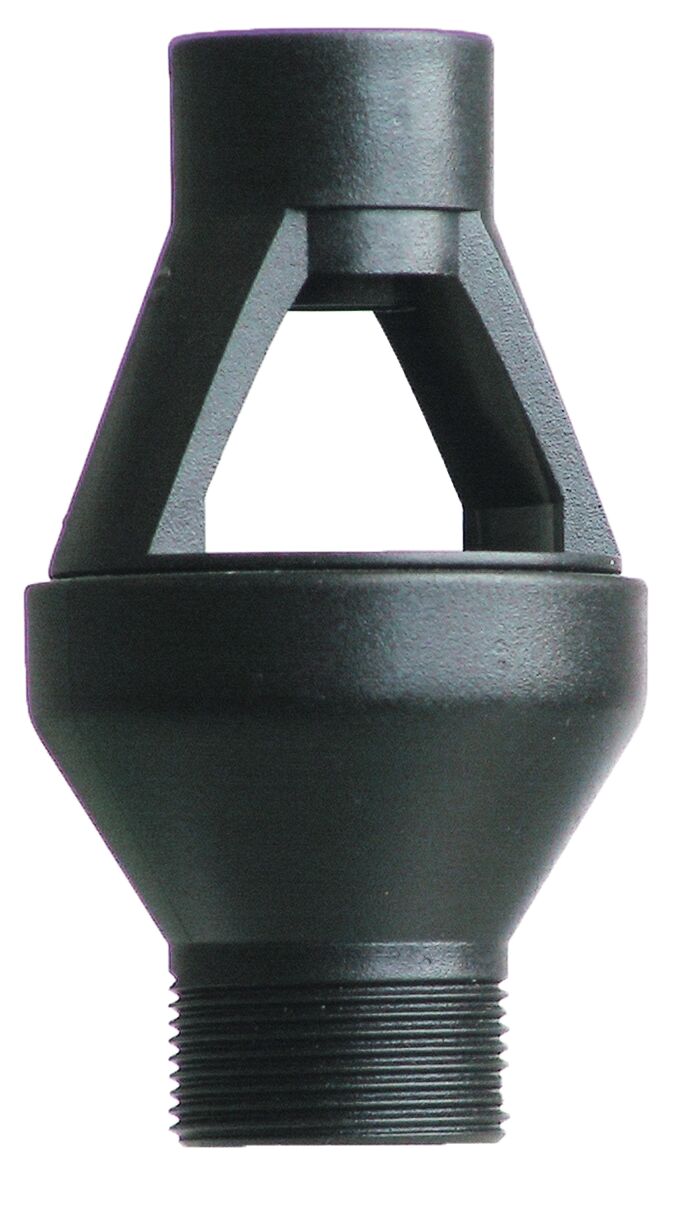

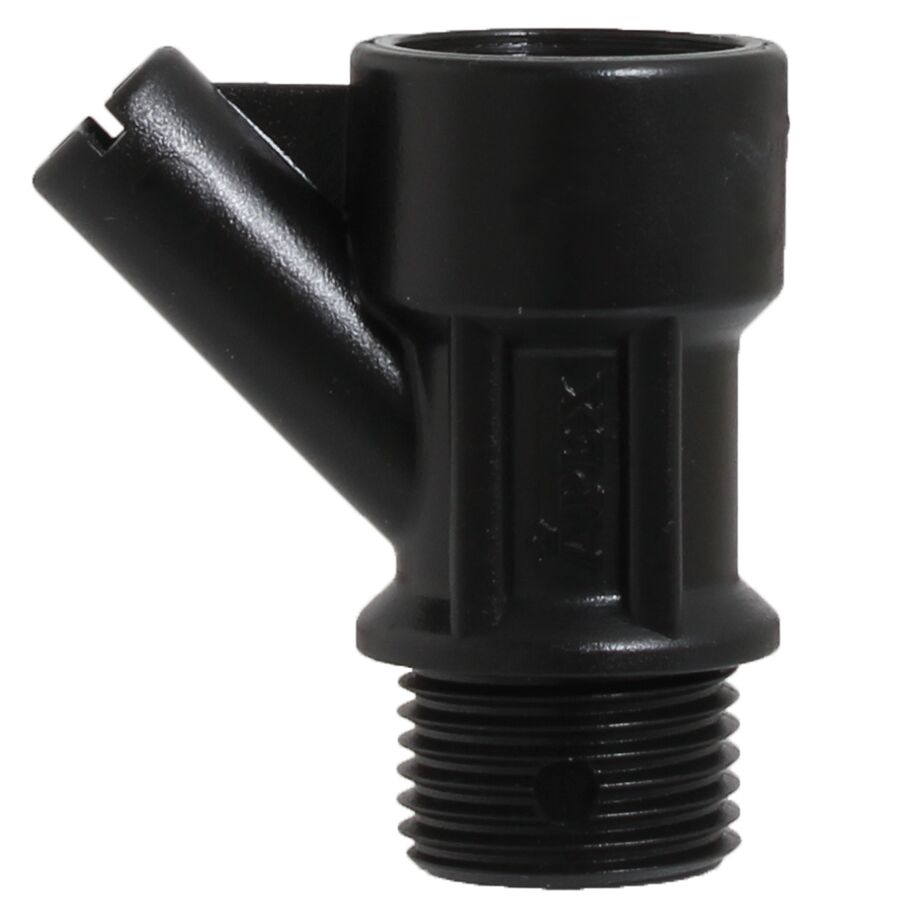

Series Vacuum Break Tundish provide an air gap to hot water systems. Safeguards cylinders in the event of a blocked drain. Provides visual check of power and water waste from thermostat or valve malfunction (not VBN). VBN has 15mm female inlet. SVB & RAVB - 20mm air gap. VBN has 15 & 20mm outlet options. VBN may be installed horizontally or vertically. Made of acetyl plastic.
- Complies with NZS 4608:1992
- For combined or over length drains
Literature
-
- RAVB-15M-20F Dimensional Drawing
- RAVB-20M-20F Dimensional Drawing
- RAVB-20M-25F Dimensional Drawing
- Specification Sheet - Vacuum Break
- SVB-15F-20M Dimensional Drawing
- SVB-15F-22M Dimensional Drawing
- SVB-15M-20M Dimensional Drawing
- SVB-15M-22M Dimensional Drawing
- SVB-20M-20F Dimensional Drawing
- SVB-20M-25F Dimensional Drawing
- SVB-22M-25F Dimensional Drawing
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Vacuum Break
