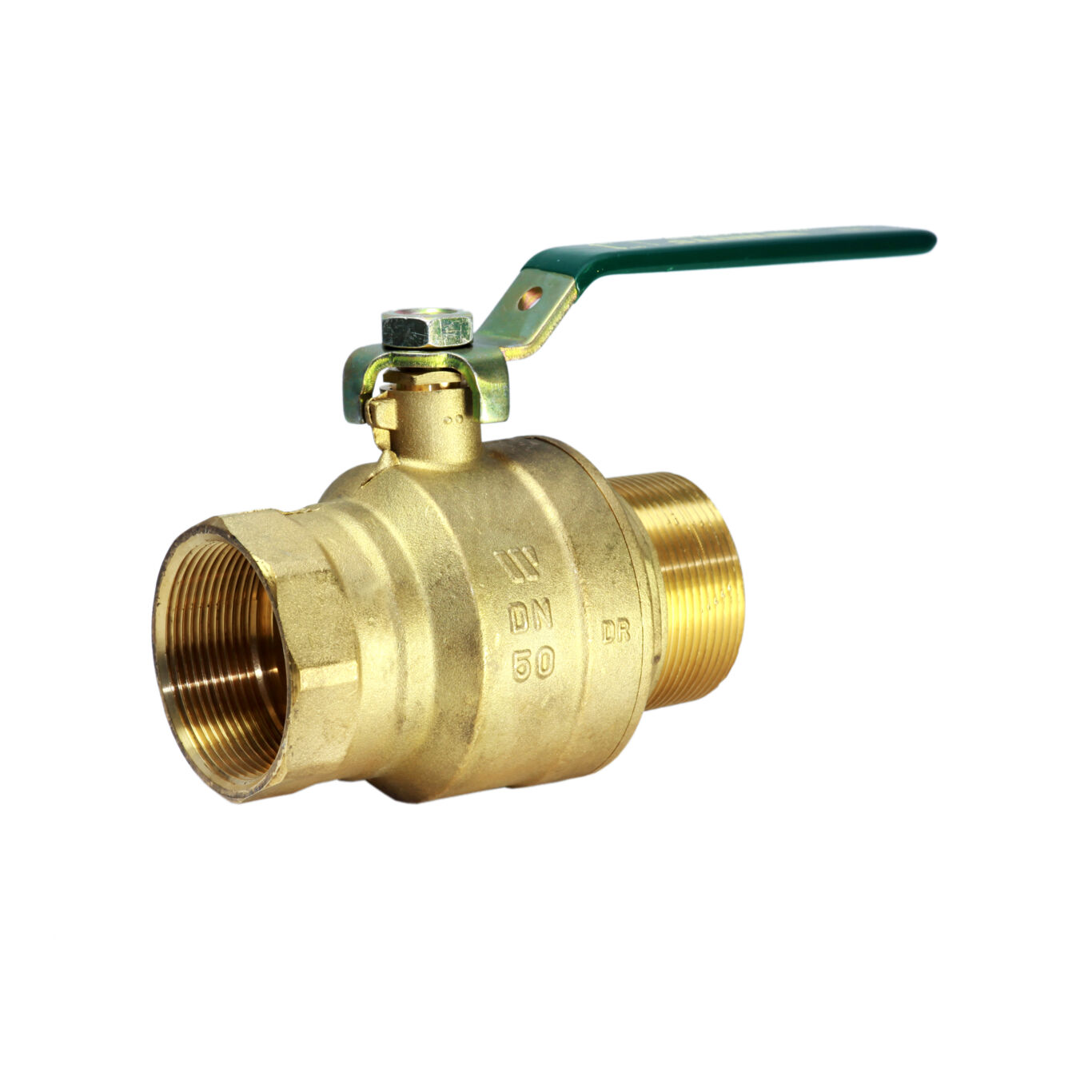

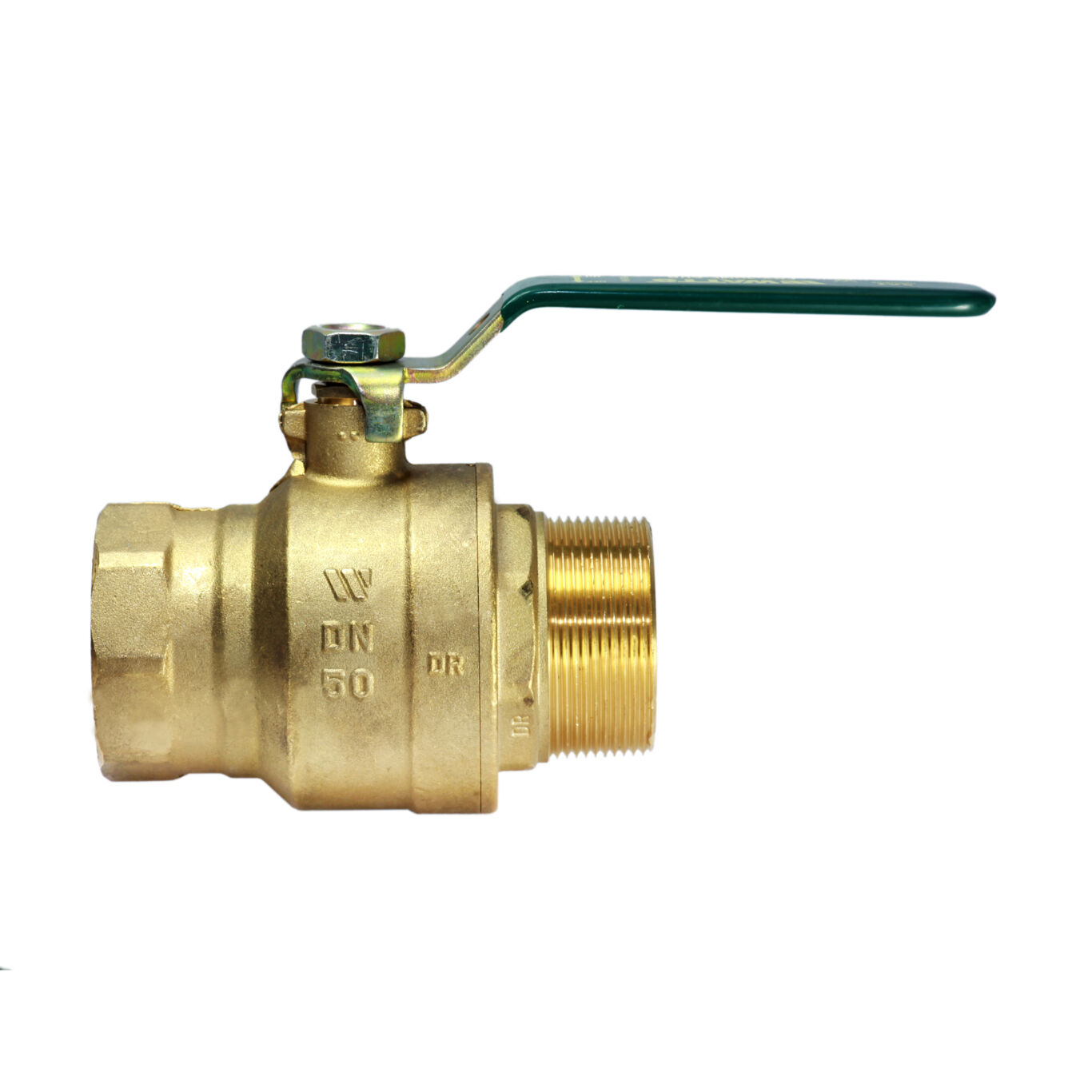

FBV-3CMF-AUS
2-Piece, Full Port, Brass Ball Valve, 15mm-50mm, 1/2-2 IN, Male and Female Threaded Connections
Series FBV-3CMF-AUS Full Port, Brass Ball Valves are used in building services, municipal waterworks and light industrial applications for a full range of liquids and gases. The FBV-3CMF-AUS ball valve is mainly used to cut off or connect medium in the pipe and can also be used for flow adjustment and control. They feature male and female threaded connections, a bottom-loaded blowout proof stem, fluorocarbon elastomeric stem O-ring , virgin PTFE stem packing seal, thrust washer, and seats, machined chrome plated brass ball, brass adapter, and steel handle. Pressure ratings for 15-50mm (1/2-2 IN) sizes are 41bar (600psi) WOG, Non-shock; 10.3bar (150 psi) WSP. Temperature range is -40°C to 204°C.
- Adjustable stem packing gland
- Fluorocarbon elastomeric stem O-ring prevents stem leaks
- Gas Mark approved threaded valves, 1/2-2 inch
- Watermark approved threaded valves, 1/2-2 inch
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FBV-3CMF-AUS
